Data Center Store / EziBlank® 800mm Sub-rack Brush Panel

EziBlank® 800mm Sub-rack Brush Panel

$55.00

The open-ended flexible brush panel for sub-rack sealing

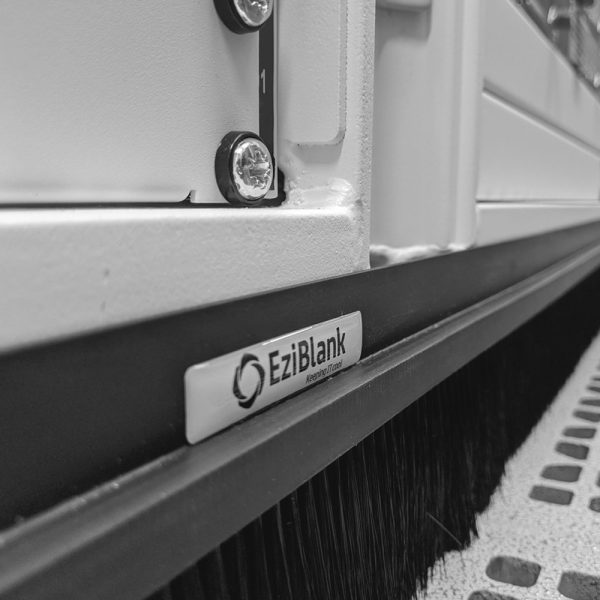

EZIBLANK® flexible 800mm Sub-rack dam is designed for retrofitting onto existing rack cabinet to effectively seal the bottom cavity of a rack cabinet.

 The high quality industrial bristles provide optimal sealing to prevent cooled air from creeping into non -production area which could cause undesirable wastage and even performance issue.

With the open-ended design, EziBlank® Sub-rack dam is supplied with industrial strength double-sided tape for secure mounting onto the cabinet frame, the 0.2mm fine bristles are effective in sealing around individual or bundle of cables entering or leaving the cabinets.

Engineered and manufactured in Germany with the highest quality of materials and precision, EziBlank® Brush

EziBlank® 800mm Flexible Sub-rack Dam (Black)

SKU: EZBRFLEXSUB800 Categories: ,

Description

The open-ended flexible brush panel for sub-rack sealing

EZIBLANK® flexible 800mm Sub-rack dam is designed for retrofitting onto existing rack cabinet to effectively seal the bottom cavity of a rack cabinet.

Specifications

Physical

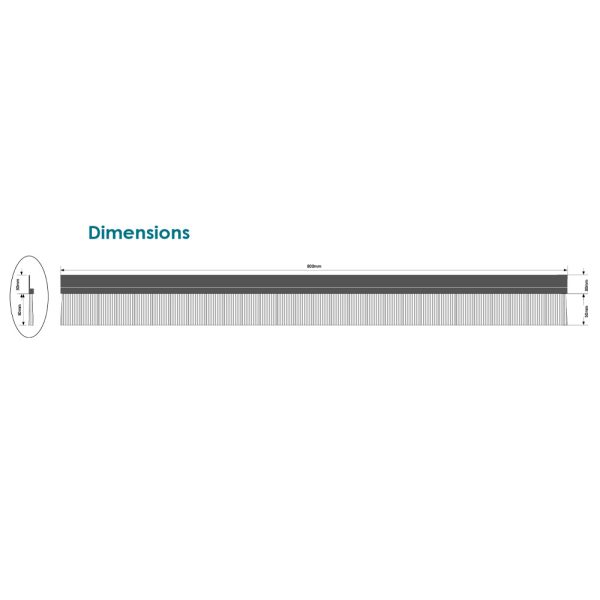

  • Dimensions: 800mmx80mmx11mm
  • Weight: 450g each , 900g per pack of 2
  • Material:
    Body: Thermoplastic rubber (TPE/TPV)
    Bristle: PA6/FH black 0.20mm.

Conformance

  • Standards: EIA-310-D
  • Environmental: RoHS
  • Toxicity:
    Non toxic and resistant to chemicals
    Low Smoke, Zero Halogen
  • Flammability
    Body: UL-94 HB
    Bristle: UL-94 V0

Features

  • Open-ended design for direct fitting onto existing installations.
  • UL-94 compliant flame retardant plastic that meets the most demanding
    requirement.
  • Robust lightweight construction that is strong and flexible.
  • Industrial strength adhesive for permanent mounting .
  • German engineered and produced brush panels with the highest quality materials and precision.
