Featured Data Center Products

We offer a variety of proven solutions for filling unused RU positions in server racks

Cool Shield Blanking Panels

A variety of cool shield blanking panels for data centers

Cool Shield Individual Blanking Panels are fire-rated plastic panels which install quickly to fill unused rack spaces within server cabinets of a control room. The rigid panels are durable, non-porous, easy to store and very cost-effective. The panels are available in sizes ranging from 1U to 10U. Seal empty rack spaces quickly with snap in clips. Removing the panels is easy as the clips release with a simple quarter turn.

Available in 1U to 10U sizes

Installs easily with snap-in clips for square or round mounting holes

Lightweight but rigid thermoplastic with exceptional fire rating

Available in Black or White

Shop 19 Inch Cool Shield blanking panels

Alternative 23″ width Cool Shield Individual Blanking Panels share the same specs as the 19″ blanking panels. Available in both round and square hole designs. Click below to purchase online now.

Available in 1U to 10U sizes

Installs easily with snap-in clips for square or round mounting holes

Lightweight but rigid thermoplastic with exceptional fire rating

Available in Black or White

Shop 23 Inch Cool Shield blanking panels

EziBlank Blanking Panels

Man using hands to separate EziBlank blanking panel from group

Cool in every sense of the word, EziBlank™ combines a sturdy, lightweight build, robust performance and elegant design features. Simple to install, durable and re-usable, EziBlank™ is the solution of the future for the data center of today.

Snap-on, tool-free mounting designed for ease-of-use and rapid deployment.

UL-94 V0 compliant flame retardant ABS plastic that meets the most demanding requirement.

Patented snappable design offers greater flexibility when applying on different height units.

Scratch resistance textured surface that offers aesthetic appearance and industrial durability.

Recyclable lightweight plastic that is both durable and environmentally friendly.

Available in Black, Clear, Gray and White

Shop 19 Inch EziBlank blanking panels

Alternative 23″ width EziBlank Blanking Panels share the same specs as the 19″ blanking panels. Available in both round and square hole designs. Click below to purchase online now.

Shop 23 Inch EziBlank blanking panels

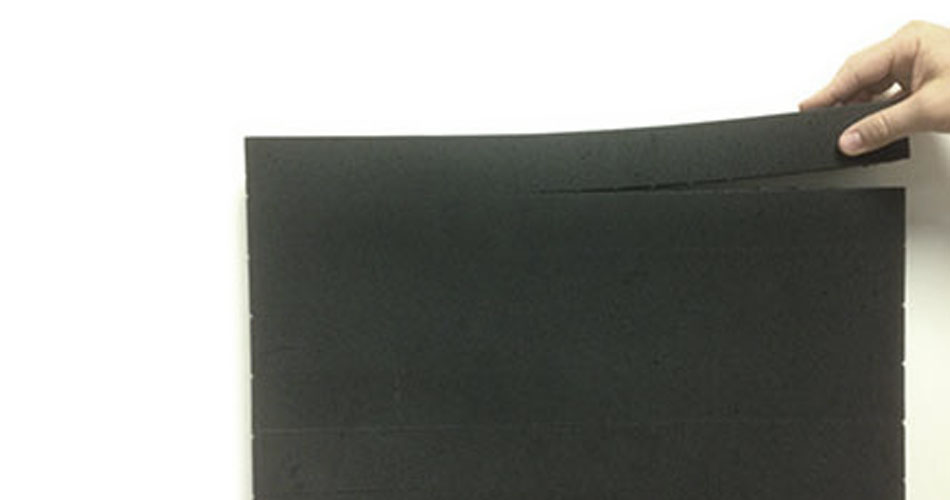

Foam AirStrip Blanking Panels

Man using hands to separate foam airstrip panel

The Cool Shield Foam Airstrip Panels are an innovative, multi-purpose solution for sealing open spaces in and around server cabinets, in order to prevent air mixing between supply and exhaust air within the cabinet. This improves cooling efficiency in cold aisle/hot aisle layouts which can be critical to the effectiveness of containment.

Perforated into strips to easily tear away as needed

99.9% air-tight material seals all gaps in and around cabinet

BP panels in (9) 1U fused strips for easy install blanking panels

No clips, screws, cage nuts or hardware needed to install

Seal unused RU spaces, gaps next rails, between cabinets, below cabinets and more

Shop 19 inch foam blanking panels

Alternative 23″ width Cool Shield Foam Blanking Panels share the same specs as the 19″ Foam blanking panels. Click below to purchase online now.

Shop 23 inch foam blanking panels

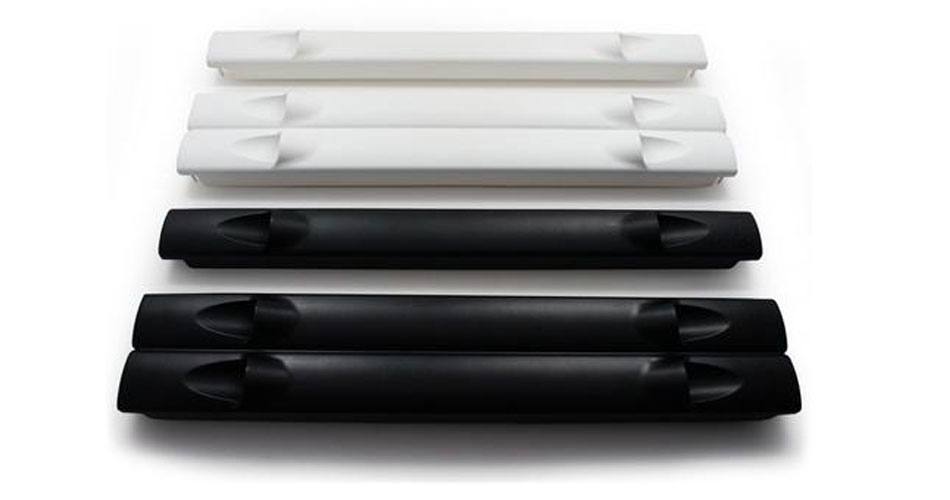

HotLok Blanking Panels

White and black hotlok blanking panels

Designed to effectively seal openings in IT equipment cabinets and control airflow for optimized cooling effectiveness. The HotLok Blanking Panel reduces hotspots and bypass airflow by preventing equipment exhaust air or hot aisle air from migrating to the conditioned air intake stream at the front of the cabinet.

Round Hole Compatible

Square Hole Compatible

Available in 1 or 2U sizes

Available with or without temperature strips

Up to 42U kits available

Available in Black or White

Shop 19 inch HotLok blanking panels

Alternative 23″ width HotLok Blanking Panels share the same specs as the 19″ blanking panels. Available in both round and square hole designs. Click below to purchase online now.

Shop 23 inch HotLok blanking panels

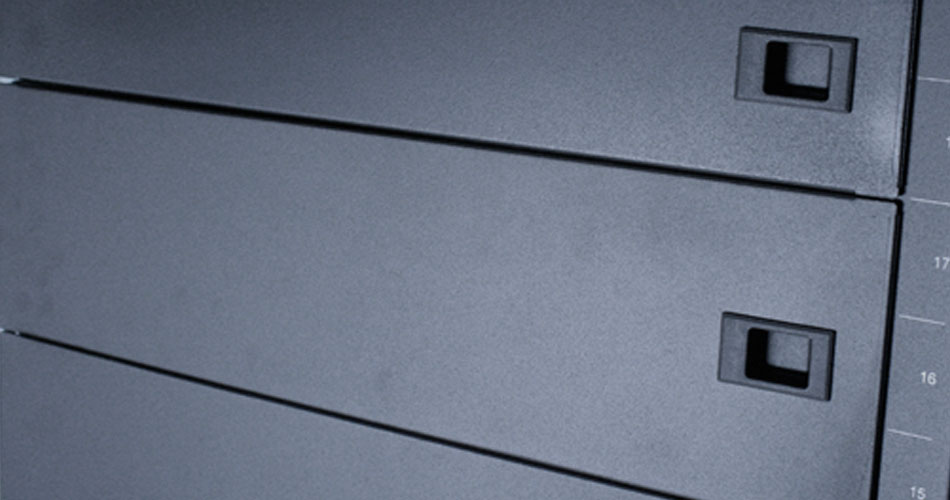

ETi Fasnap Blanking Panels

Eti Fasnap panel system, close-up

Tool-less blanking panels. Any size available. We assist the customer in driving down production time and costs associated to the typical 1u & 2u ordering. We assist customers in planning and ordering the right sizes to support expansion 2-3 times per year! By using this approach we can build larger orders at, or below the molded costs per U. This allows us to provide a tool-less panel with 2-3x the quality. Square hole and round hole styles are available.

Available Sizes: Any Size Available

Construction: Steel

Finish: Powder Coat Black

Compatibility: Square Hole and Round Styles Available

19 in & 23in. Widths

Shop 19 inch Eti Fasnap blanking panels

Alternative 23″ width ETi Fasnap Individual Blanking Panels share the same specs as the 19″ blanking panels. Available in both round and square hole designs. Click below to purchase online now.

Shop 23 inch Eti Fasnap blanking panels

Universal Temperature Strips for Blanking Panels

Cool Shield universal blanking panel air temperature strip

Color-coded adhesive temperature strips are a unique and effective way to monitor temperature in your server cabinet rows. The numbers are color-activated to provide a clear warning if the temperature is outside of the ASHRAE recommended range. The strip will display red if the temperature rises above 81 degrees and will display blue below 64 degrees. The more extreme the temperature, the larger and more prominent the warning is displayed.

Temperature displays from 53F to 110F

1″ high x 9.86″ wide

Strong adhesive to prevent peeling

Temperature accurate to +- 1.5 degrees

Shop for universal temperature strips
